H-Series Chassis

Overview

The BEST idea you ever had.

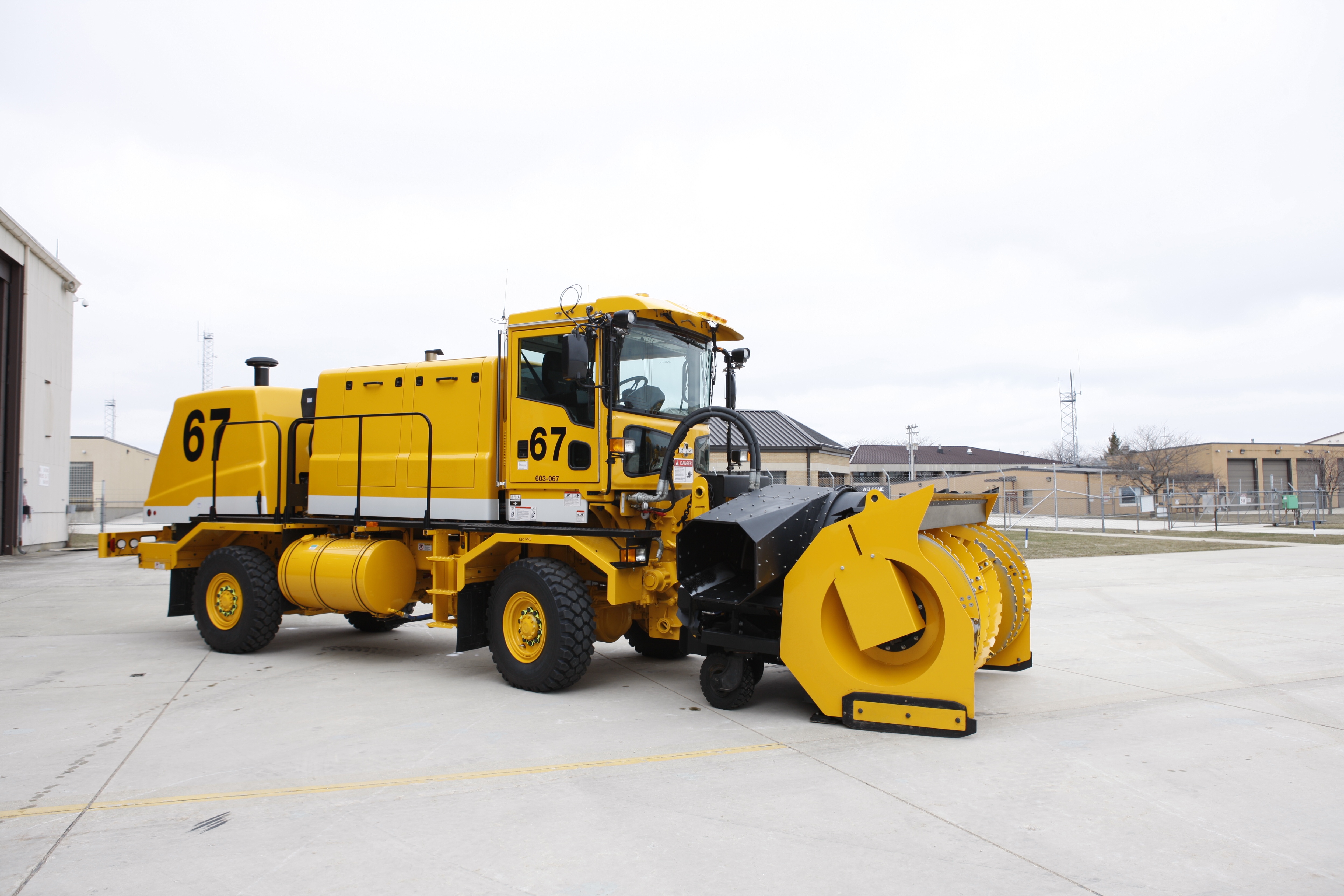

The H-Series snow chassis was built around the specific needs of those who manage extreme snow removal at airports around the globe. Advances in visibility, reliability, power, and flexible accessory integration (blowers, plows, scrapers, and brooms) come standard. The 24/7 world-class service and support come with the Oshkosh name.



Take Back the Runway.

Key Features

INCREASED VISIBILITY.

It’s not just the look of the H-Series™ chassis that’s so impressive. It’s the look out. A much larger windshield, with 40% more glass and no corner posts. Rear three-quarter windows eliminate blind spots. Light bars are placed out of sight lines. Lower front windows give you a bird’s-eye view of attachments. The windshield stays clear with better wiper coverage and an improved defroster system. In every way, the H-Series is designed to give the operator an unparalleled view of the airport and its obstacles.

MORE ADAPTABLE.

Pilots, passengers, airport traffic control. They don’t care if you’re brooming a foot of powder or throwing two-foot windrows over the lights. They just want to see bare runway. The H-Series is built to seamlessly integrate with a variety of blowers, plows, scrapers and brooms to adapt to your requirements.

GREATER COMFORT.

The H-Series cab responds with a host of features that will make operators as comfortable as they are productive. Like a cab that’s a full 10” wider and 10” deeper. Improved sound insulation for better communication. Two full size seats to accommodate a supervisor/training officer. Easier to operate digital climate control. Add in two doors, power roll-down windows, and yes, even cup holders, and operators will find that putting in a little overtime is anything but hard time.

BUILT-IN SAFETY.

An unwavering commitment to safety has long been a priority at Oshkosh. As is evident in the H-Series snow chassis. Unmatched power and speed are combined with built-in advanced safety features. These include emergency stop button for components, a joystick that only engages when the driver is ready, and on-dash error messages that tell operators what safety interlock is blocking a selected action.

Specifications

Download - H-Series Chassis Spec Sheet

Download - Snow Products Brochure



FRONT AXLE:

  • Oshkosh Model 27K, single reduction with special heat-treated alloy steel shafts, driver-controlled traction differential and Oshkosh cage ring type steering ends
  • 6.17:1 ratio

REAR AXLE:

  • Eaton 17427, full floating, single reduction with special heat-treated alloy steel shafts and driver-controlled traction differential
  • 6.14:1 ratio

AIR BRAKES, PARKING AND EMERGENCY:

  • Secondary Emergency System: Modulated split type
  • Auxiliary air inlet, left side
  • Quick drain lanyards on all tanks

BRAKES AND SERVICE:

  • Type: Dual system, air operated mechanical
  • Electronic Antilock Brake System (4S4M)
  • Compressor: 18.7 cfm

STANDARD ACCESSORIES:

  • National Standard Plus air ride driver’s seat, right of center
  • 55,000 BTU heater/defroster
  • Digital Climate Control
  • 12 volt Power outlet (1)
  • Cup holders (2)
  • Electronic engine controls with on-board diagnostics integral with Oshkosh Command Zone®
  • Electric remote control heated West Coast type mirrors
  • Fresh air type heater and defroster
  • LCD dash display
  • Light bars
  • Quad electric windshield wipers mounted above windshield
  • Self-canceling turn signals
  • Side window defrosters
  • Tilt/telescoping steering wheel
  • Windshield washer, 6 qt. (5.7 L)

INSTRUMENTATION:

  • Oshkosh Command Zone® LCD dash pod on steering column

EQUIPMENT:

  • Dual 125 gal [473 L] fuel tanks
  • Full catwalks
  • Heated fuel/water separator
  • One-piece molded fiberglass tilting engine cover, carrier engine

DRIVE ENGINE:

  • Cummins ISX 11.9 L in-line 6 cylinder, 4 cycle
  • Displacement: 729 cubic in. [11.9 L]
  • Horsepower: 350 @ 1,800 rpm
  • Peak Torque: 1,350 lb ft @ 1,200 rpm
  • Governed rpm: 2,100

ELECTRICAL SYSTEM:

  • Alternator: 200A, chassis engine driven
  • Lighting: 12 volt
  • Starting: 12 volt
  • Battery: (4) 12 volt, 950 CCA each @ 0°F [-18°C] (3800 CCA total)

FRAME:

  • Single formed channel made of carbon manganese steel, heat-treated
  • Yield Strength: 120,000 psi [827 Mpa] minimum
  • RBM: 2,818,000 in-lb per rail
  • Construction: Grade 8 flanged bolts and flanged locknuts

LIGHTING:

  • Cab-mounted headlights with turn signals
  • Clearance and marker lights to comply with federal regulations
  • Fender-mounted headlights and turn signals
  • Roof-mounted strobe light
  • Dual stop, tail, turn signal lights (LED) at rear

STEERING SYSTEM:

  • Make & Type: Sheppard XD120 integral hydraulic power gear
  • Chassis Hydraulics Warning System: Low level/high temperature

SUSPENSION:

  • Front: Hotchkiss, semi-elliptic spring
  • Rating: 27,000 lb [12,247 kg]
  • Rear: Hotchkiss, semi-elliptic spring
  • Rating: 18,000 lb [8,165 kg]

TIRES:

  • 395/85R20 - 20 ply

TRANSFER CASE*:

  • Oshkosh 55000 Series, rear axle declutch
  • 2.66:1 and 0.98:1 ratios

TRANSMISSION:

ALLISON® Rugged Duty Series 4-speed electronic

VEHICLE RATINGS AT AXLE HUBS:

  • Front: 27,000 lb [12,247 kg]
  • Rear: 23,000 lb [10,433 kg]
  • Total: 50,000 lb [22,680 kg]

WHEELBASE:

  • 164 in [4,166 mm]

WHEELS:

  • Steel Disc
  • 20 x 10 in (508 X 254 mm)

Options

CHASSIS OPTIONS

ACCESSORIES

  • Integral A/C
  • Heated windshield
  • Side window wipers
DRIVE TRAIN
  • Cummins 385, 425,500 engines
  • 29K Front Axle Rating
  • Oshkosh ALL STEER® electronic all wheel steering system (23K and 26K rear only)
  • Driver controlled and automatic lock/unlock transfer case

ELECTRICAL SYSTEM

  • HID and other lighting packages
  • On-board battery charger (20A self regulating)
  • 270A alternator

FRAME AND CHASSIS

  • Single side fuel fill
  • Centralized side drain kit
