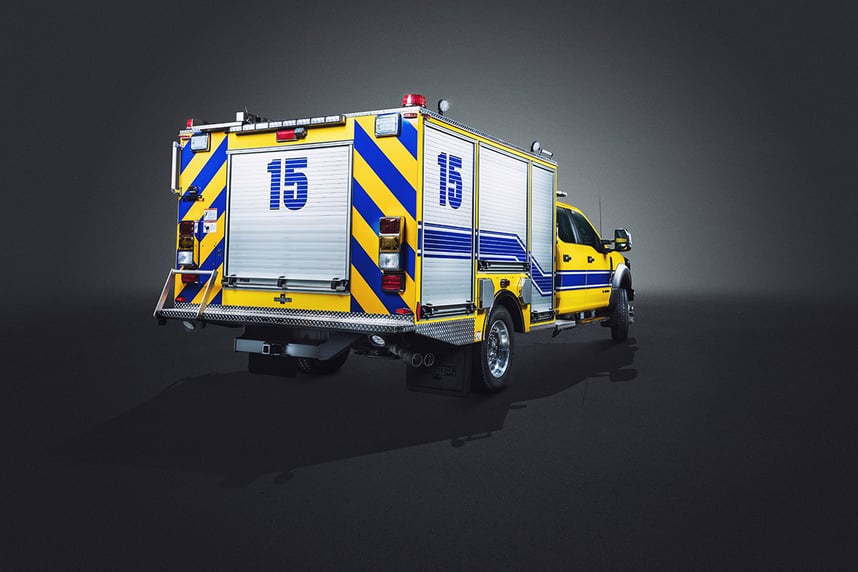

Stinger Q4


Quick-hitting. Long-lasting. The Stinger Q4 rapid intervention vehicle delivers ultra-fast, durable response for aircraft rescue, firefighting, hazmat, and emergency situations. It features nimble maneuverability, lightweight yet robust construction and immediate knockdown power.




Key Features


120-300 gal. (454-1136 L) water capacity. 250 GPM pump module delivery system.


10-40 gal. (38-151 L) single or twin tank with foam educator system or piston pump injection system, delivered with water up to 3% concentration.


500 lbs. (227 kg) system capable of delivering up to 10 lbs. (4.53 kg) per second through a 100 ft. (30.48 m) handline and up to 12 lbs. (5.44 kg) per second through a bumper turret either entrained or independently.


120 lbs. (54 kg) system capable of delivering up to 5 lbs. (2.26 kg) per second through a 100 ft (30.48 m) handline.



STINGER Q4 Fire Suppression System is compliant with NFPA 414 and 150/5220-10E performance specifications.

Available Features:

  • Dual agent handline and bumper turret nozzle
  • Pneumatic or centrifugal pump delivery
  • 120 - 300 gal. (454 - 1,136) water capacity
  • Single or Dual Tank Foam Eductor System or Piston Pump Foam Injection System
  • 500 lbs. (227 kg) dry chemical capacity
  • 120 lbs. (54 kg) clean agent capacity
  • Up to 150 ft. (46 m) reeled hose line
  • One crosslay with up to 200 ft. (61 m) of 1.5" (3.6 cm) hose
  • Ground level fill system for foam and water
  • Cab center operating console
  • System activation in cab or at hose reel
  • Full featured structural panel
  • Lightweight, composite agent propellant cylinders


Ford Super Duty F-550, 4 X 4

  • Super cab or crew cab
  • XL or XLT trim
  • 6.7 Power Stroke® V8 Turbo Diesel
  • TorqShift transmission


  • Master battery switch
  • Back-up alarm
  • Two front tow eyes
  • Front bumper with brush guard
  • Front and rear mud flaps
  • Pump and roll
  • Aluminum body construction
  • Rollup compartment doors
  • Compartment flooring with sweep out design
  • NFPA-compliant non-slip aluminum treadplate
  • Stainless steel body fender crowns
  • Body warranty - 10 (ten) years
  • NFPA-compliant reflective stripping
  • Painted spatter grey compartment interiors
  • LED – DOT light package
  • NFPA-compliant LED emergency warning lights
  • Siren and speaker
  • LED interior compartment lights
  • NFPA-compliant cab and body LED perimeter lights
  • Electronic load management system
  • Flexible center console map light
  • Rubber compartment floor matting


  • SCBA cavity seats
  • Factory aluminum wheels
  • Polished aluminum wheels
  • 12,000 lbs. (5.44 Metric Ton) front or rear bumper winch
  • Color back-up camera
  • Forward Looking Infrared (FLIR) camera
  • Class V receiver hitch and 7-pin connector
  • Two-tone paint
  • Adjustable shelves
  • Roll-out adjustable trays
  • Slide-out floor mounted trays
  • Roll-out drop down trays
  • Slide-out tool boards
  • Locking rollup compartment doors
  • Horizontal tool mounting tracks
  • LED rear body traffic advisor light
  • Battery charger
  • Shoreline
  • High-Lumen flashlights
  • Rear upper scene lights
  • Telescoping scene lights
  • Cab and compartment receptacles with Shore Power
  • Body mounted light mast
  • Underbody corrosion protection
